Magtech Group

Single Zone

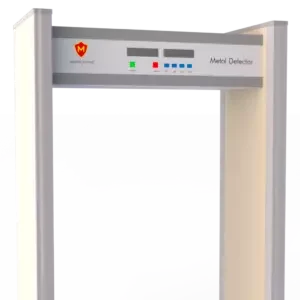

Door Frame Metal Detector

Magtech Group - Single Zone Door Frame Metal Detector - DFMD in India



A Single Zone Door Frame Metal Detector is a metal detector fitted in a door to detect metal hidden by the person passing through this door. Single Zone means it blares alarm on whole frame when it detects metals. It be a complete protection for your premises entrance.

This Single Zone DFMD produces an alternating current that passes through a coil which produces an alternating magnetic field. When a person passes through the detector by hiding metal inside his clothes, the electrically conductive metal is close to the coil and the currents will be induced in the metal. It will produce a magnetic field of its own.



DFMD – Single Zone
Frame Dimension (mm)
OD: 2210 x 830 x 480

ID: 1980 X 710 X 408
Weight (Kgs)
40
Working Temperature
-25° to 55°c
Detection of Materials
Ferrous & Non-Ferrous
Power Supply
220 V AC, 50hz
Power Consumption
Less than 12 Watts
